MacroStation

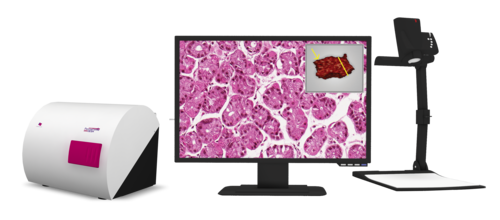

The 3DHistech MacroStation is a high-performance recording system, which produces macro shots of tissue sections. The state-of-the-art camera technology photographs the tissue samples with high colour fidelity and saves them as digital files, allowing them to be processed directly on the monitor. You can therefore mark and comment on the corresponding area even before preparing the frozen section. This is particularly useful for pathologists in the field of frozen section analysis, as including the original tissue image in the final findings (case file) provides universal transparency throughout all stages. Thanks to its stainless steel cover, the MacroStation is also perfectly suited for sterile laboratory environments.

Specifications

Technology

Wolf Vision VZ-8 Visualizer:

  • CMOS 1/3" 2-MP sRGB colour camera
  • 1080p HD resolution (1920 x 1080 pixels)
  • Optical zoom factor: 14x
  • Zoom control: Manual via scroll wheel on camera head or via remote software
  • Image output rate: 30 frames/second
  • High colour fidelity, ideal for capturing skin and tissue tones
  • Autofocus (high-speed; can be disengaged)
  • Manual focus (using buttons on camera head or via remote software)
  • Maintenance-free illumination with high-performance LED. 30,000-hour service life.
  • Pivotable camera head (for large objects)
Dimensions (W x D x H) Work surface: approx. 33 cm x 34 cm x 4.5 cm
Weight (with stainless steel cover) Approximately 5.5 kg
